Gloss Meter - How to perform a gloss test
A guide explaining a topic
By Lee Higgins
1. Calibrating the gloss meter
1

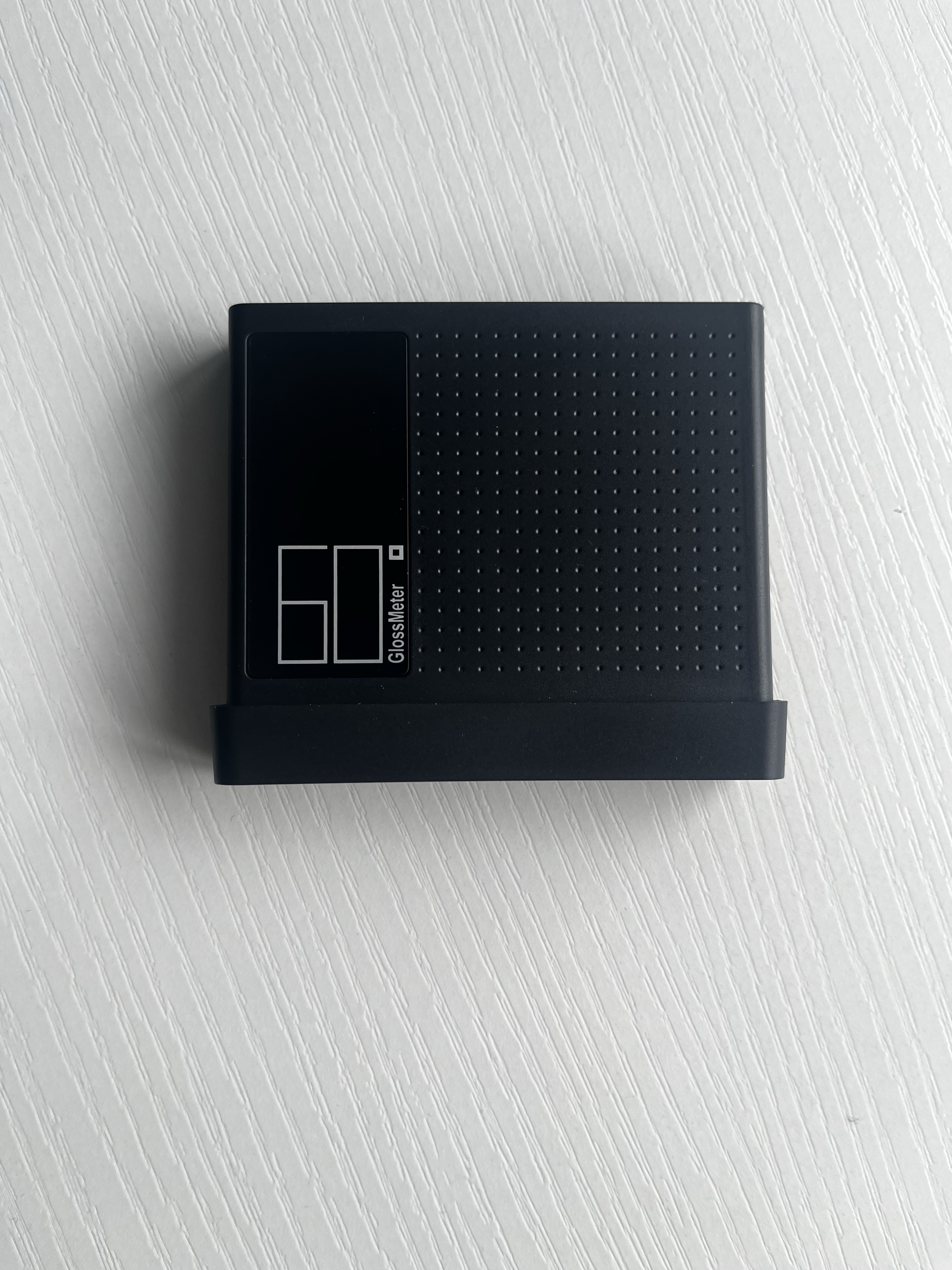

Before starting, ensure the base panel is connected to the gloss reader, this is magnetic and should connect itself.
2

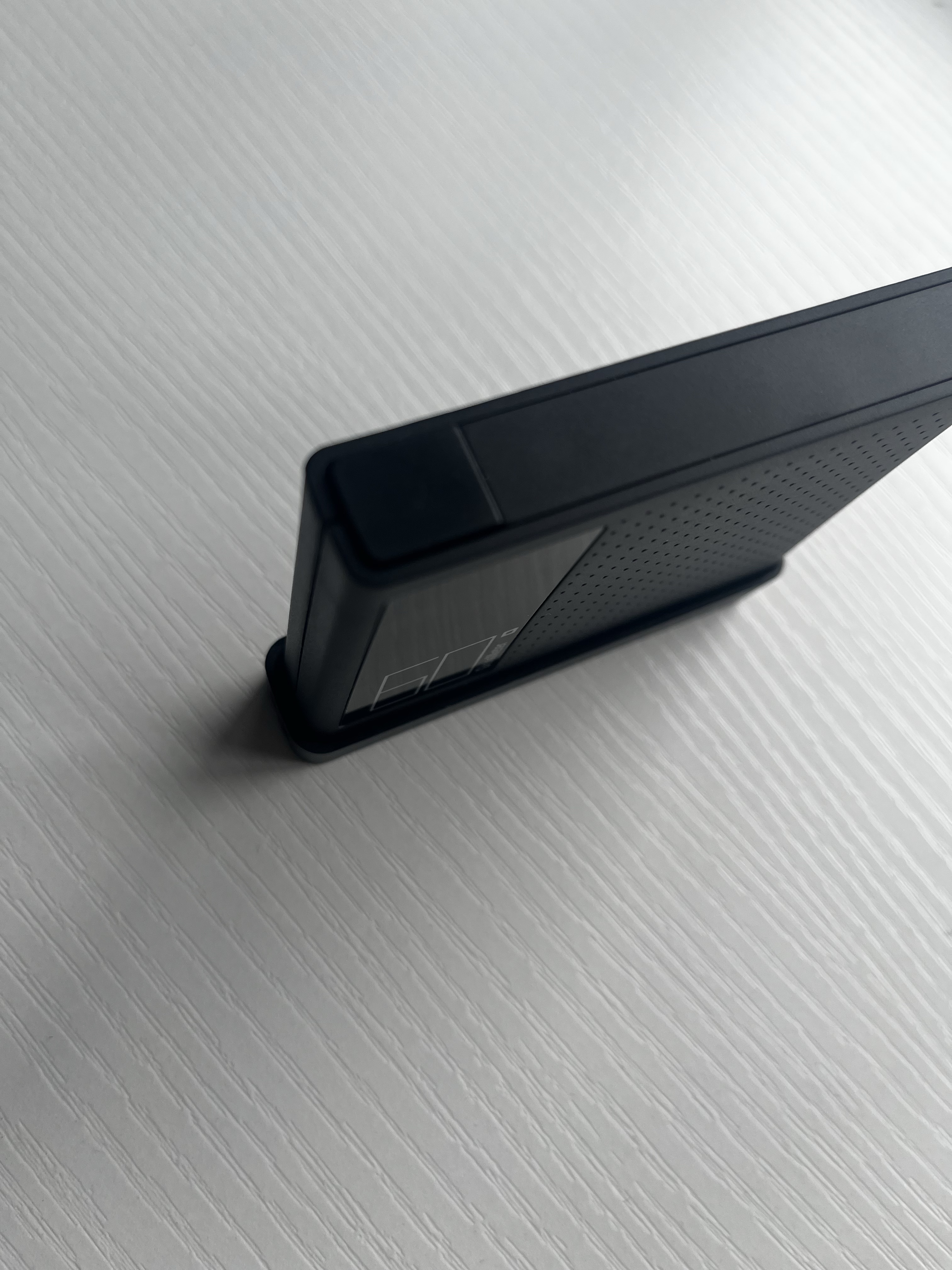

Press the power button on the top left once to calibrate the gloss reader with the base panel connected.
3

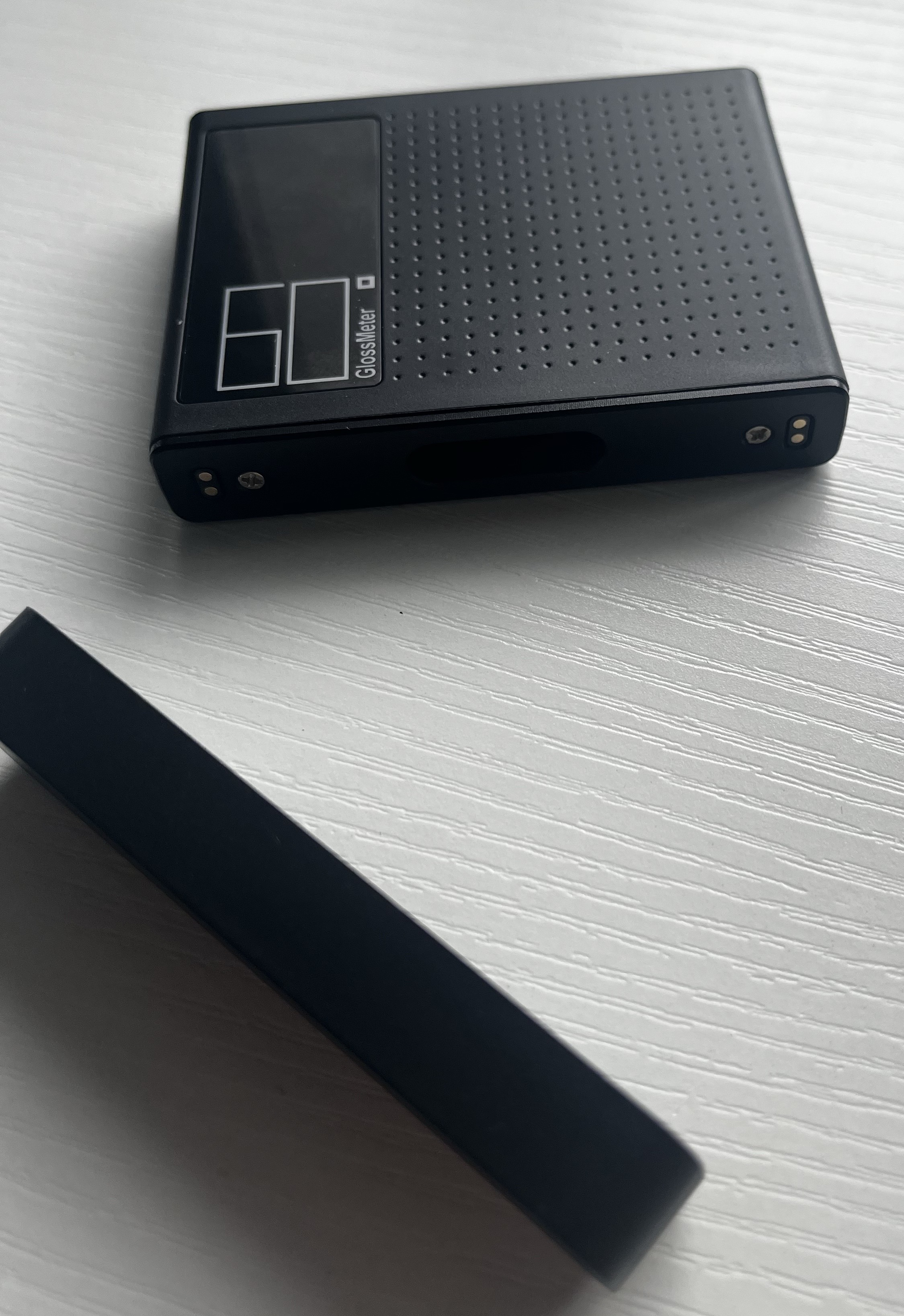

Take the base panel off before testing a sample.
2. Testing the samples.
4

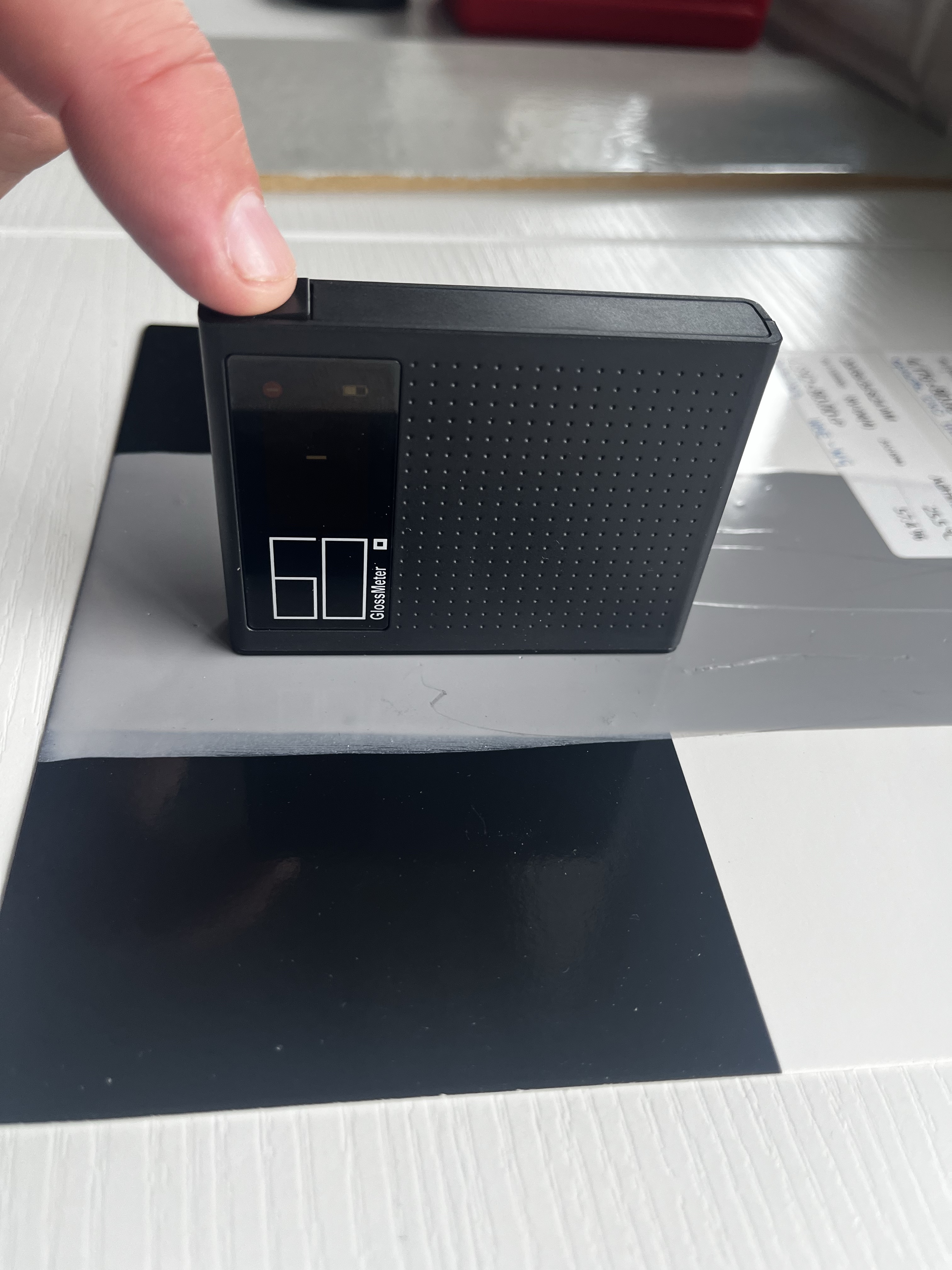

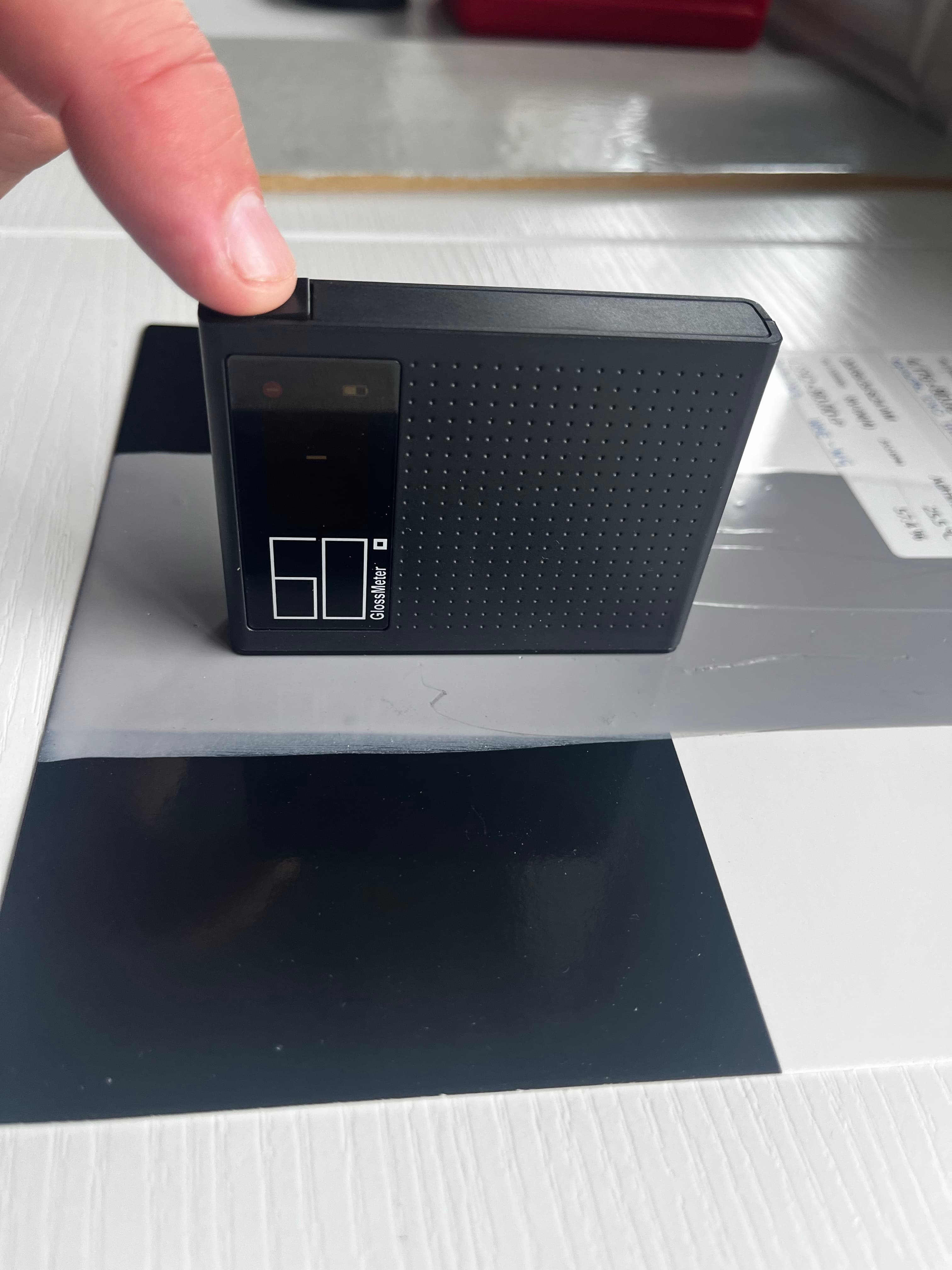

Place the reader onto a cured sample and take the reading by pressing the power button once.
5

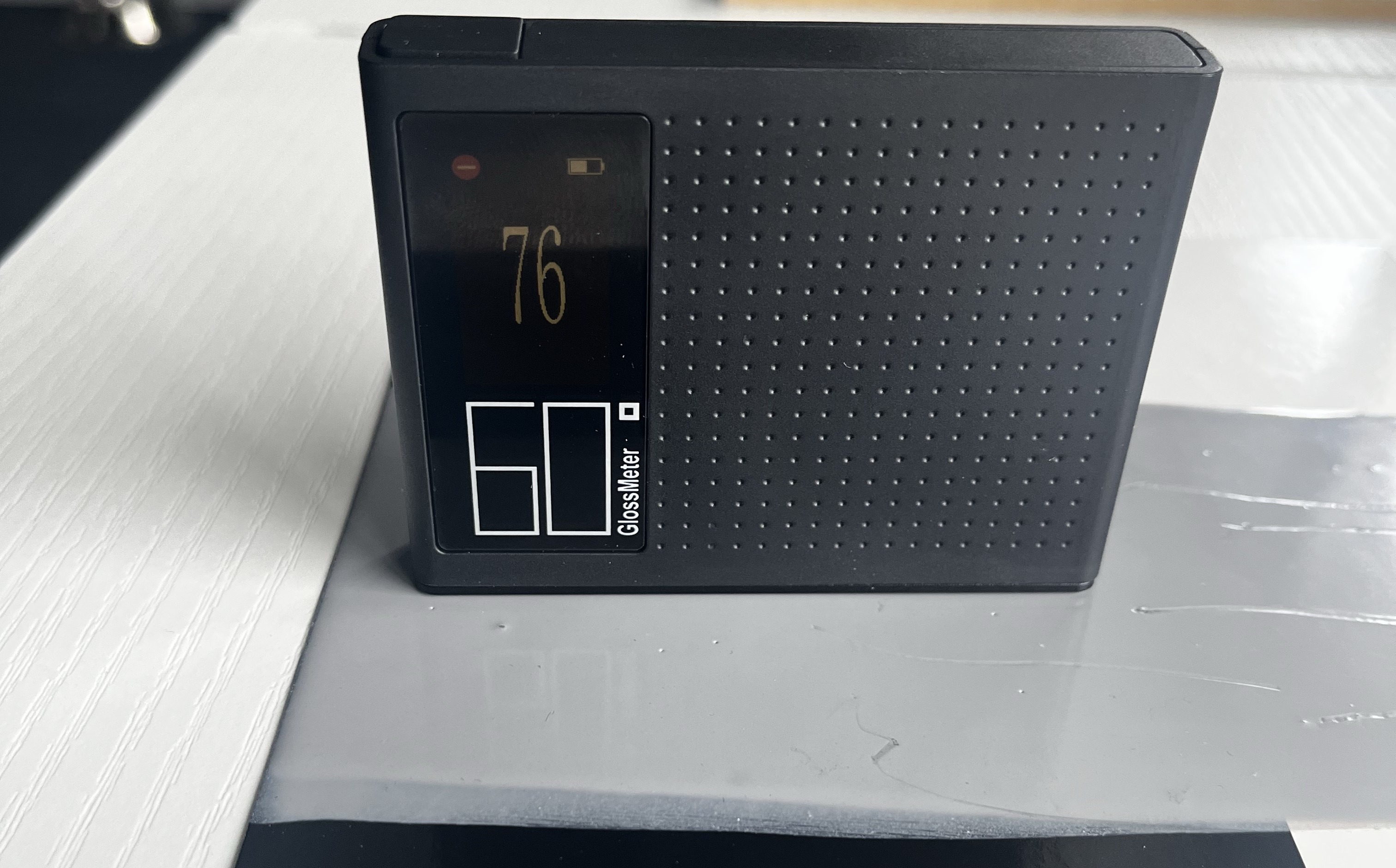

If successful, a reading will show on screen in the highlighted area.
3. Recording the test results.
Repeat this step 4 times, ensuring the meter is moved into different area of the sample.
The reading must be recorded after each test and an average taken from all 4 tests.
The average will be the result that is logged.
The reading must be recorded after each test and an average taken from all 4 tests.
The average will be the result that is logged.
